The right airless paint sprayer tips can make or break your painting project, ensuring a professional finish while minimizing waste and boosting efficiency. A poor choice risks overspray, uneven coats, or costs soaring up to $100 per hour in lost time and materials. Whether you’re a contractor tackling large jobs or a DIYer refreshing your home, this guide equips you with expert tips to select the perfect airless paint sprayer tips.
Understanding Airless Paint Spray Tips
Selecting the right airless paint spray tips starts with decoding its three-digit code, like 515, which tells you the fan width and orifice size. These factors control how paint is applied, with fan width suiting your project type and orifice size matching your coating’s thickness and flow, ensuring a smooth finish. Here’s how the code works:
First Number: Multiply it by 2 to get the fan width in inches when spraying 12 inches away from the surface. For a 515 tip, 5×2 gives a 10-inch fan.
Last Two Numbers: Indicate the orifice size in thousandths of an inch, determining material flow. For 515, 15 means a 0.015-inch orifice, allowing greater flow with higher numbers.
The combination of fan width and orifice size shapes the spray’s thickness, critical for achieving the desired coverage.
How To Choose Airless Paint Sprayer Tips
The perfect spray tip saves time and delivers a smooth finish, but you need to match it to your coating, fan width, and airless sprayer. Getting this right cuts down overspray and speeds up your job, whether it’s a small touch-up or a large exterior. Follow these three steps to nail your airless paint spray tips selection:
1. Match the Coating
The orifice size of the spray tip determines the thickness of the coating.
- Thin Materials: Coatings like clear coat lacquer, shellac, transparent stains, and water sealers need a 0.009–0.015-inch orifice for precise, light application.
- Medium Materials: Paints like interior latex, oil-based enamels, polyurethane, and solid stains require a 0.015–0.019-inch orifice for versatile coverage.
- Thick Materials: Heavy coatings like elastomerics, block fillers, and intumescents demand a 0.021–0.039-inch orifice for robust flow.
2. Choose Fan Width:
The fan width determines how much surface area you cover with each pass. A wider fan applies thinner coats and spreads paint faster but creates more overspray, making it ideal for large surfaces like walls. A narrower fan delivers thicker coats with less overspray and better control, suited for smaller or detailed areas.
3. Confirm Sprayer Compatibility:
Your airless sprayer must handle the tip size needed for your coating. Thicker materials require larger orifice sizes, which demand more airless paint sprayer power. Check your airless paint sprayer’s manual for its maximum tip size to ensure it supports your chosen airless paint spray tips. Using a tip with a flow rate too high for your airless sprayer can strain the equipment and accelerate tip wear, enlarging the orifice over time.
Common Mistakes with Airless Paint Spray Tips
Mistakes with airless paint spray tips can lead to uneven finishes or wasted paint, but avoiding these errors ensures a smooth, professional outcome.
- Selecting the Wrong Tip Size: An incorrect orifice size or fan width can apply coatings too thickly or thinly, compromising your finish. Choose a spray tip that matches your coating’s thickness and the surface size to ensure even coverage.
- Overlooking Tip Wear: Worn airless paint spray tips will shrink fan width and enlarge the orifice. This causes uneven spray patterns, increased paint use, and more passes to cover the same area. Replace tips when patterns turn oval or circular to maintain quality and minimize waste.
- Cleaning Improperly: Poor cleaning practices such as skipping solvent use or using wire brushes will shorten airless paint spray tips lifespan.
Airless Paint Spray Tips Maintenance
Taking care of airless paint sprayer tips keeps them performing like new and saves you from costly replacements. Regular upkeep stops clogs and wear, ensuring every spray job runs smoothly. Follow these steps to maintain your airless paint sprayer tips:
- Spray at Low But Right Pressure: Use the lowest pressure needed while achieving a good spray pattern. This reduces overspray, minimizes airless paint spray tips wear, and prolongs pump life.
- Strain the Material: Filter coatings with cheesecloth or nylon strainer bags before spraying. This removes grit that can clog or damage airless paint spray tips.
- Clean Filters Regularly: Clean filters after each use. This prevents blockages and maintains smooth operation.
Worn airless paint spray tips develop sharper spray edges, reduced fan widths, leading to higher paint consumption and lower quality finishes. Using a worn spray tip increases costs and compromises results. That’s where HVBAN’s durable airless paint spray tips come in. With a Rockwell hardness of 93, they offer excellent durability, ensuring consistent performance over time.
Why Choose HVBAN Airless Paint Spray Tips?
HVBAN offers airless paint spray tips built for durability and precision, crafted from stainless steel, carbide, and POM with a Rockwell hardness of 93. Compatible with major brands like Graco, Titan, Wagner, HVBAN, HiSprayer, our airless paint sprayer tips come in all sizes to suit most projects. Explore our lineup:

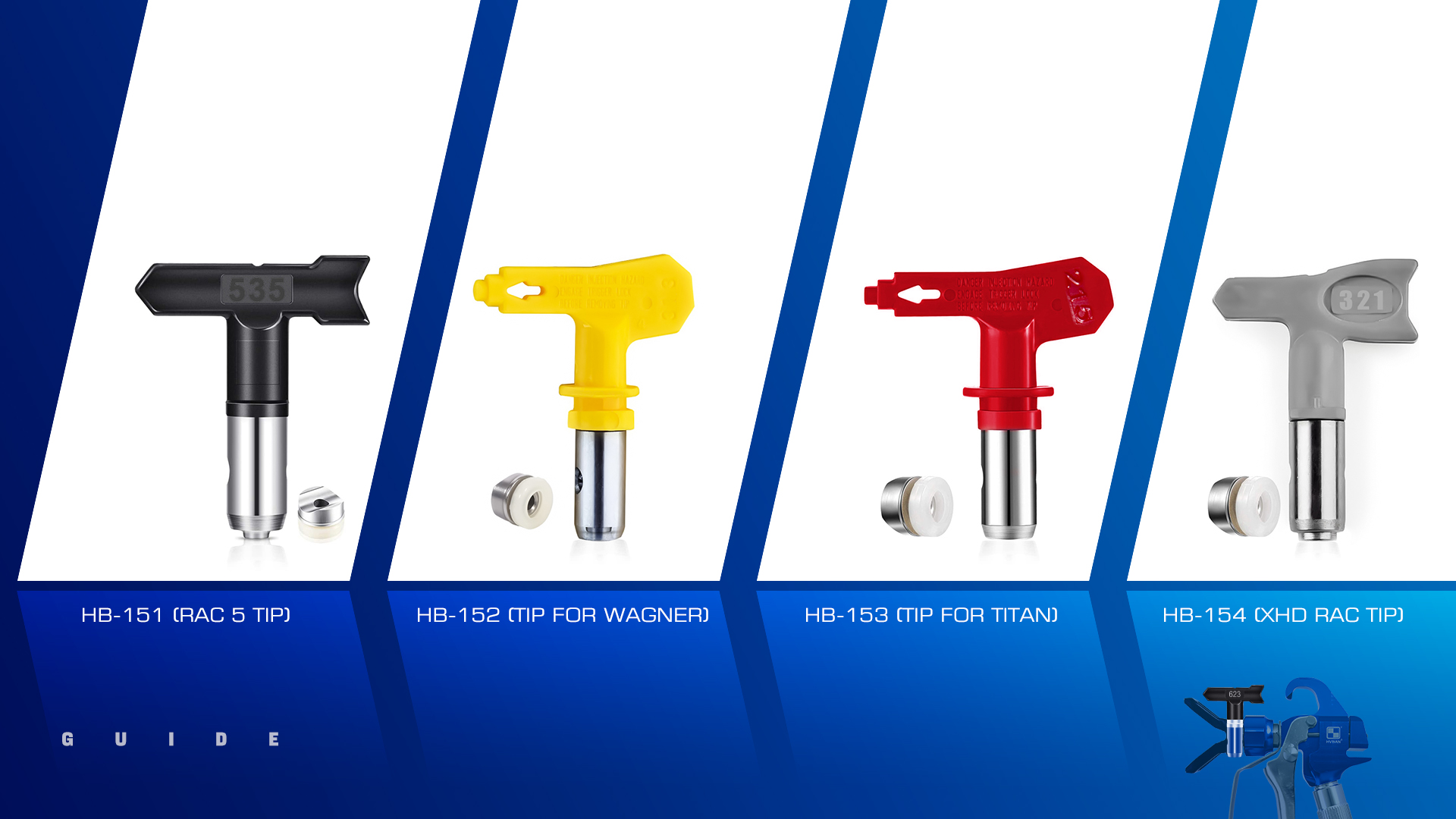

1.HB-151 (RAC 5 Tip):
Material：Stainless steel, carbide, POM
Dimension：All sizes
Scope：for all brand
Package：blister packaging
N.W(G)：22
G.W(G)：32.1
2.HB-152 (Tip for Wagner):
Material：Stainless steel, carbide, POM
Dimension：All sizes
Scope：for all brand
Package：blister packaging
N.W(G)：22
G.W(G)：32.1
3.HB-153 (Tip for Titan):
Material：Stainless steel, carbide, POM
Dimension：All sizes
Scope：for all brand
Package：blister packaging
N.W(G)：22
G.W(G)：32.1
4.HB-154 (XHD RAC Tip):
Material：Stainless steel, carbide, POM
Dimension：All sizes
Scope：for all brand
Package：blister packaging
N.W(G)：16
G.W(G)：30
With HVBAN, you get durability, precision, and pro-grade results every time.
Conclusion
Selecting the right airless paint spray tips is crucial for achieving high-quality, efficient results, and HVBAN’s range of airless paint spray tips stands out for their durability, versatility, and precision. Whether you’re a professional contractor or a DIY enthusiast, HVBAN offers the perfect spray tip to meet your needs. With models like HB-151, HB-152, HB-153, and HB-154 designed to handle various coatings and projects, HVBAN delivers superior performance, every time.
